cara membuat lampu led berjalan

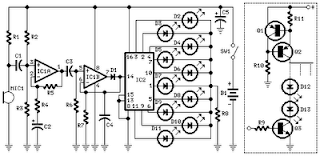

Pakar Iklan Skema Rangkaian Lampu LED Berjalan - Buat anda yang lagi nyari skema rangkaian, silahkan lihat skema rangkaian LED berjalan dibawah ini:


Components list:
R1_____________10K 1/4W Resistor
R2,R3__________47K 1/4W Resistors
R4______________1K 1/4W Resistor
R5,R6,R7______100K 1/4W Resistors
R8____________820R 1/4W Resistor

C1,C3_________100nF 63V Ceramic or Polyester Capacitors
C2_____________10΅F 50V Electrolytic Capacitor
C4____________330nF 63V Polyester Capacitor (See Notes)
C5____________100΅F 25V Electrolytic Capacitor

D1___________1N4148 75V 150mA Diode
D2-D11_________5 or 3mm. LEDs (any type and color)

IC1___________LM358 Low Power Dual Op-amp
IC2____________4017 Decade counter with 10 decoded outputs IC

M1_____________Miniature electret microphone
SW1____________SPST miniature Slider Switch
B1_______________9V PP3 Battery
Clip for PP3 Battery

Additional circuit parts (see Notes):
R9,R10_________10K 1/4W Resistors
R11____________56R 1/4W Resistor
D12,D13 etc.____5 or 3mm. LEDs (any type and color)
Q1,Q2_________BC327 45V 800mA PNP Transistors
Q3____________BC337 45V 800mA NPN Transistor
